Construction Type

Panels

Timber

Pinewood

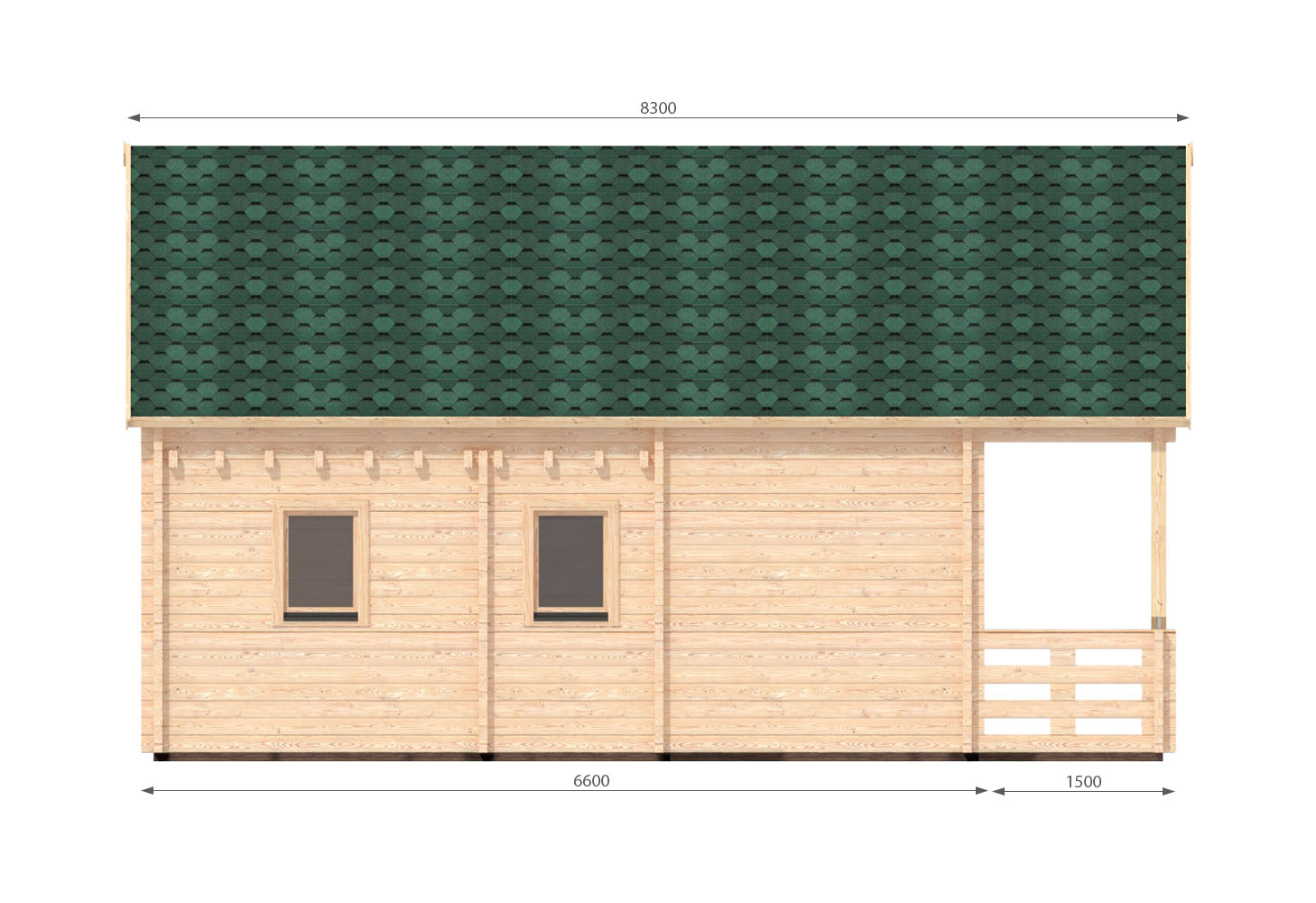

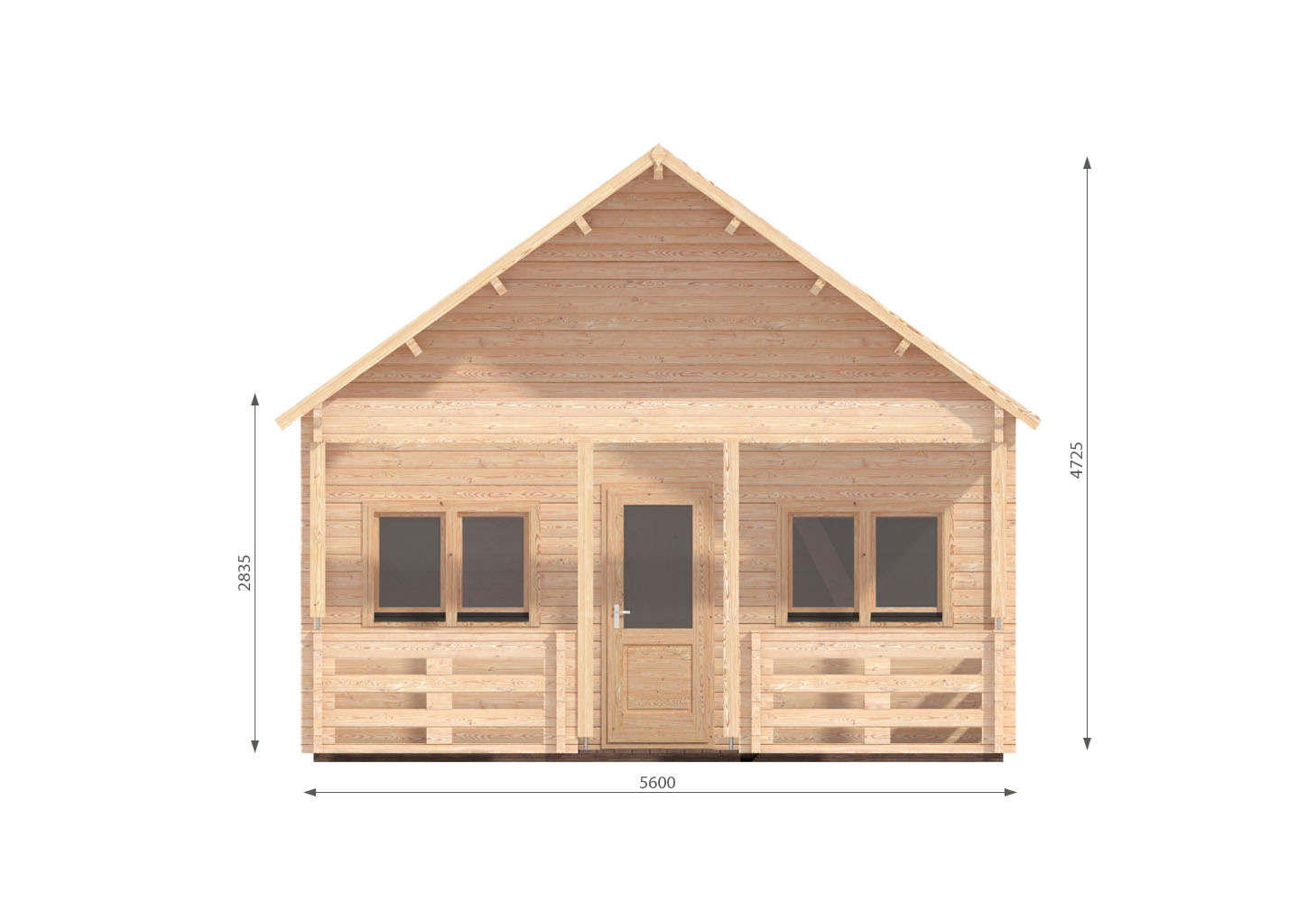

External measures (ft)

18.3 x 21.6

Base foot print (ft)

17.7 x 21

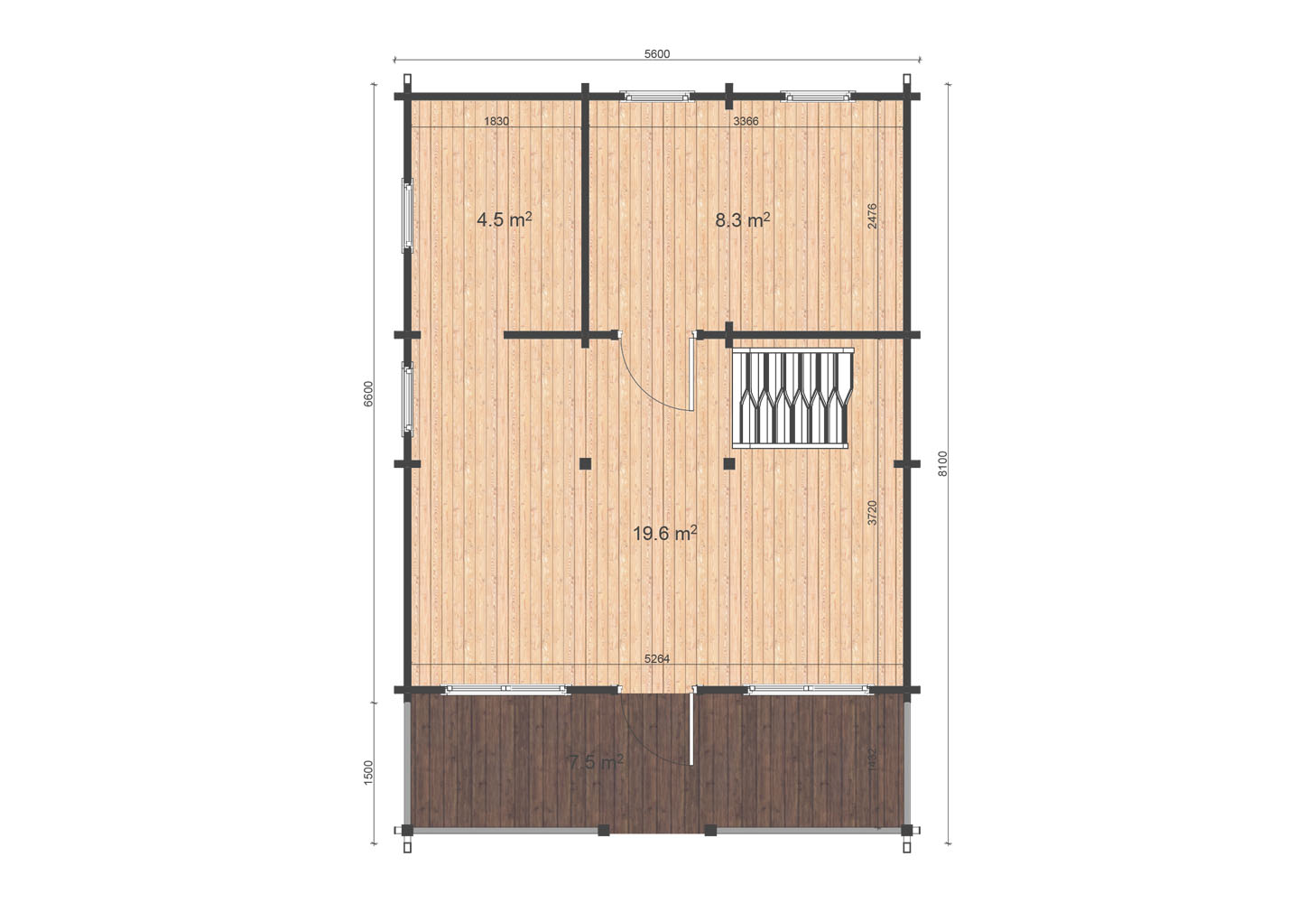

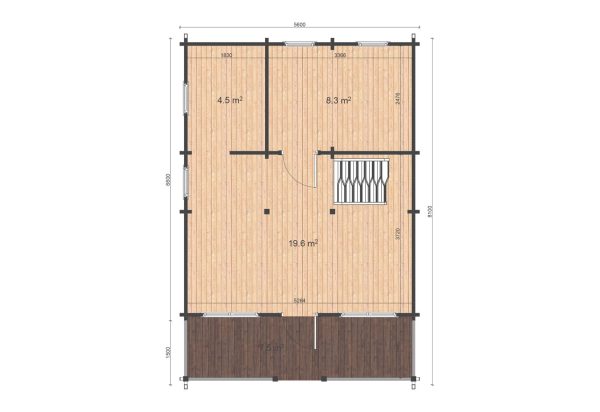

Internal house area (sft)

349

Terrace/Balcony (sft)

81

Roof area (sft)

649.1

Roof shingles (sft)

742.7

External wall area (sft)

796.5

wall area for insulation

876.2

wall area for paint (sft)

876.2

Door Type

1 single 50% glass 1 single 100% wood

Window Type

5 single 2 double

Glazing

Double Glazed

Floor boards (in)

1.1

Roof Type

40-60

Roof Overhang

0.7

Roof angle

36

Wall height Premium (ft)

9

Total height Premium (ft)

15

Threshold

external – covered with steel internal – no threshold

Warranty (months)

60

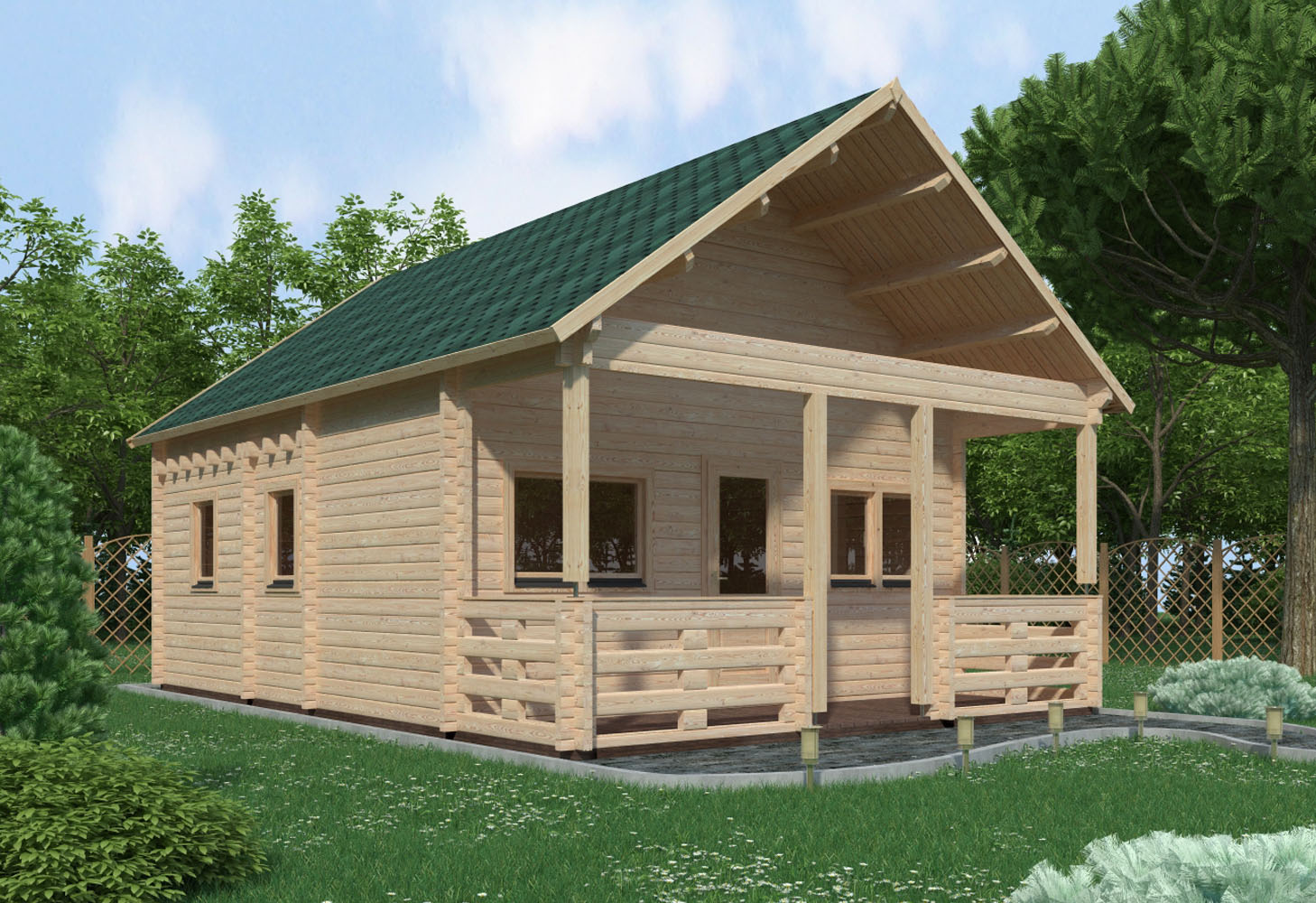

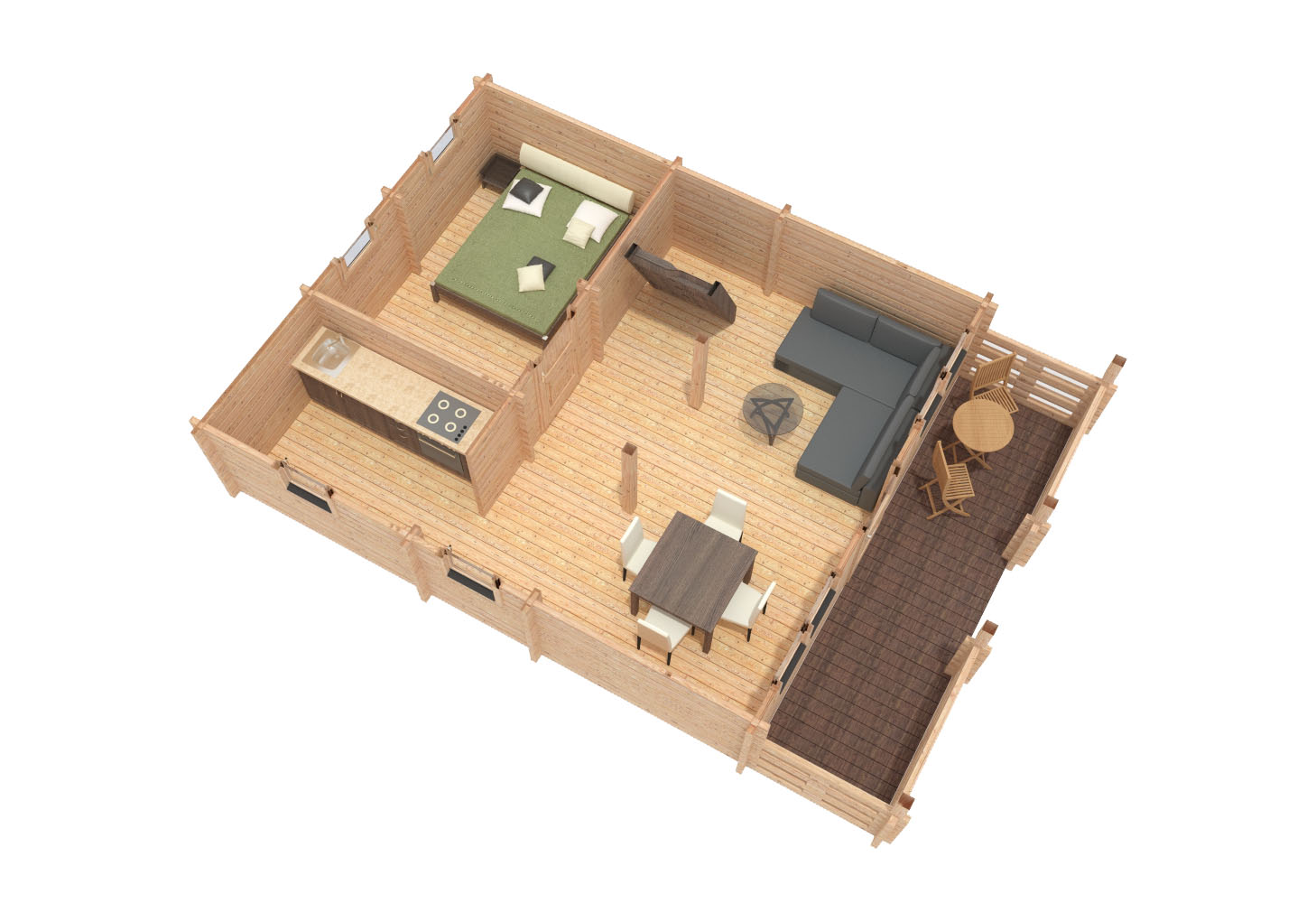

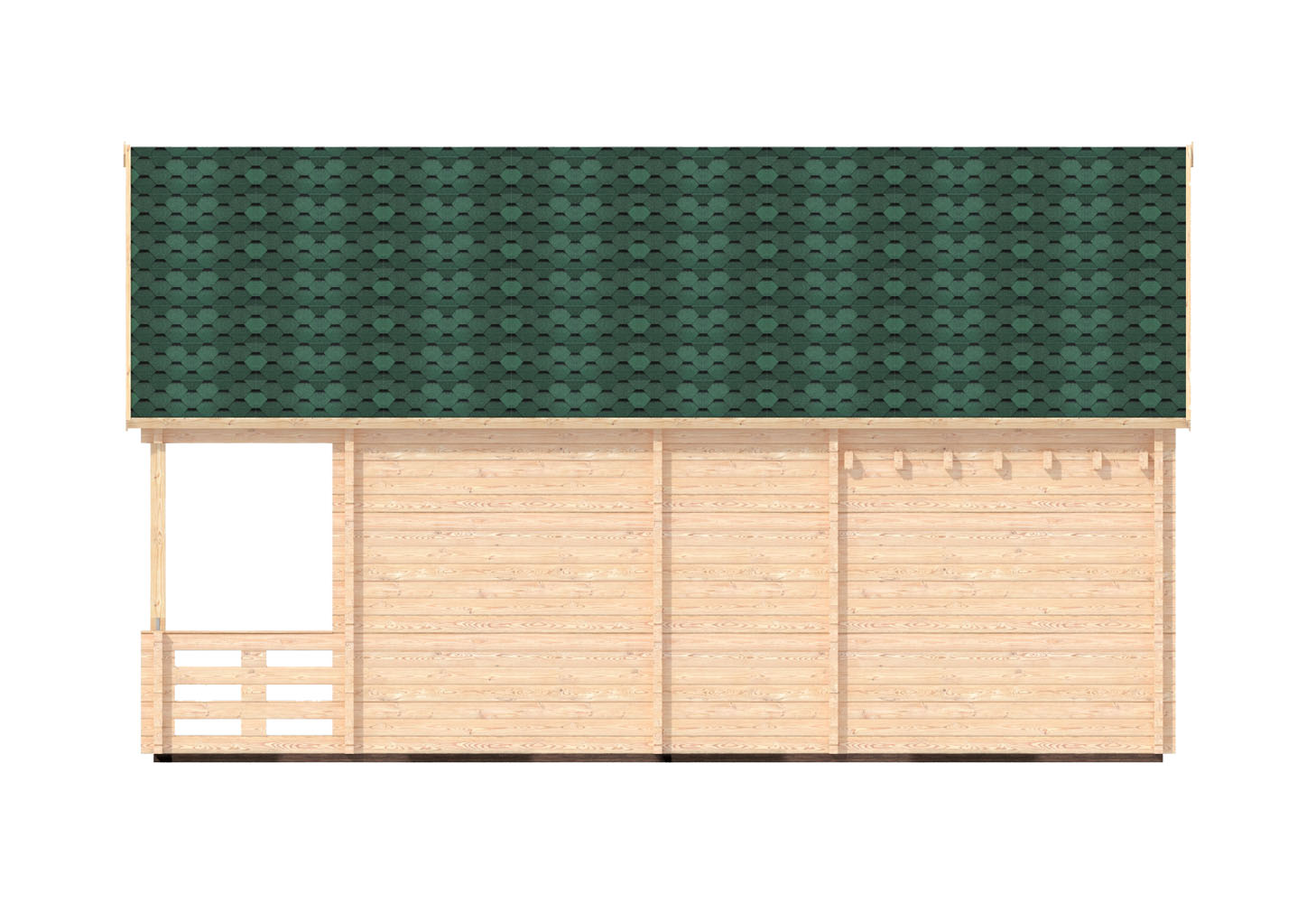

Max 5.6×6.6 m

38860.00$

Safeguard your cabin, garage, or carport with our premium bitumen shingles. Crafted with a fiberglass mat base and fortified with a resilient bitumen mixture on both sides, our shingles offer unparalleled protection.
Featuring a bottom layer of cold-resistant self-adhesive bitumen, our shingles adhere securely to the roof surface, while the top layer is adorned with mineral granules for added durability.

Unrivalled in quality, our shingles meet the high standards, ensuring superior performance. Resistant to open flames and boasting enhanced thermal and noise insulation, our shingles stands out from other roofing materials.

Streamlined installation is a hallmark of our product. With bitumen shingles, laying them on your cabin, garage, or carport roof is a breeze. Simply peel off the protective tape, fix the sheet to the roof, and secure it with nails.

0.00$

A first layer of protection, allowing you extra time for the assembly process, even during unpredictable weather. We offer 3 colors of impregnant: clear, yellow (pine color), or white (wood visible).

0.00$

The roof insulation package contains 19mm roof boards, plastic membrane for water proofing, wooden rafters (44x100mm), rock wool, a breathable membrane, wooden planks (19x50mm), OSB boards, wind boards and 3 metal corner pieces for each beam

0.00$

Wall insulation consists of 100mm rock wool, and a breathable membrane. The outer surface is covered with cladding boards.

0.00$

Floor insulation comes with several parts. The components included in this package are Plastic membrane followed by wooden bearers on it. The floor is filled with 50mm pure Rockwool which is then covered with breathable membrane and the floor boards.

0.00$
0.00$
Options Price0.00$
Product Price38860.00$
Total38860.00$
